Customized   wood Kiln

Why is it possible to customise the size of a drying kiln? Because it is considered that there are many customers with different space sizes in their plants and different usage scenarios, in order not to affect the users’ usage. That is why we offer a customised service. Of course, the most important thing is that we are the direct manufacturer and can do this easily.

SWKD-4.0HFV

Custom Wood Drying Kiln

For a direct manufacturer, custom service is a very simple matter. Customers only need to provide the required size and the amount of dry wood used, and we can help you calculate the size of your kiln for free.
Our smallest wood drying kiln size is 3 cubic meters, the largest can reach 21 cubic meters.
If you want to know your kiln production process, we can communicate directly via video. Let you more clearly understand the process of the product.

Stable drying without defects
The wood is drying under vacuum conditions, it offers low boiling point of water at 35℃. Low temperature drying solves the problems of wood cracking, deformation and discoloration, especially for precious timber sensitive to temperature.

High quality drying result
High frequency vacuum wood dryer machine equipped with hydraulic pressure system on the top, the hydraulic pressure system supply more than 6 tons pressure on the wood stacking to prevent wood deformation and bending. And we use stainless steel 304 to make the pressure plate.

High Frequency Vacuum Drying Kiln Technology

vacuum drying kiln
Drying effect

High frequency is also called radio frequency, this technology is a kind of direct heating. The principle is using the wood as a medium, the wood acts as a capacitor. . When giving the two pieces of metal plate voltage, an electric field is created between them. Then water molecular in the wood and between electrodes will be polarized by the alternating magnetic field and move in very high speed rapidly. The impact and friction (billions of times per second) among water molecules creates heating in very short time.
Different from the conventional steam kilns or common vacuum kilns which are use hot air or heated plates to dry the wood from surface to core. High frequency power does not heat wood but makes moisture inside the wood heating themselves. It is a kind of directly heating, This continuous effect allows the wood heated from surface to core wholly and uniformly.

That is one of the reasons why the high frequency vacuum machine is 10 times faster than conventional wood drying kilns. The hardwood from 30% -40% moisture content to 8-10%MC only take 4 days and for the fresh cut wood it only takes 10-12 days to get 8-10% moisture content.

Our kiln also adopts vacuum dehydration technology. The stainless steel vacuum pump can drain out the air and the atmospheric pressure in the vacuum chamber can reach -0.093Mpa, which allows water to vaporize at a low temperature below 40℃, At the same time, vacuum can also suck the vapor out.

The machine water circulation system will condensate the vapors in the chamber, then drain them out.

Meanwhile Wood is drying under a vacuum wet and low temperature condition. It is nice to the wood and will ensure that the wood is no cracks and with nature color.

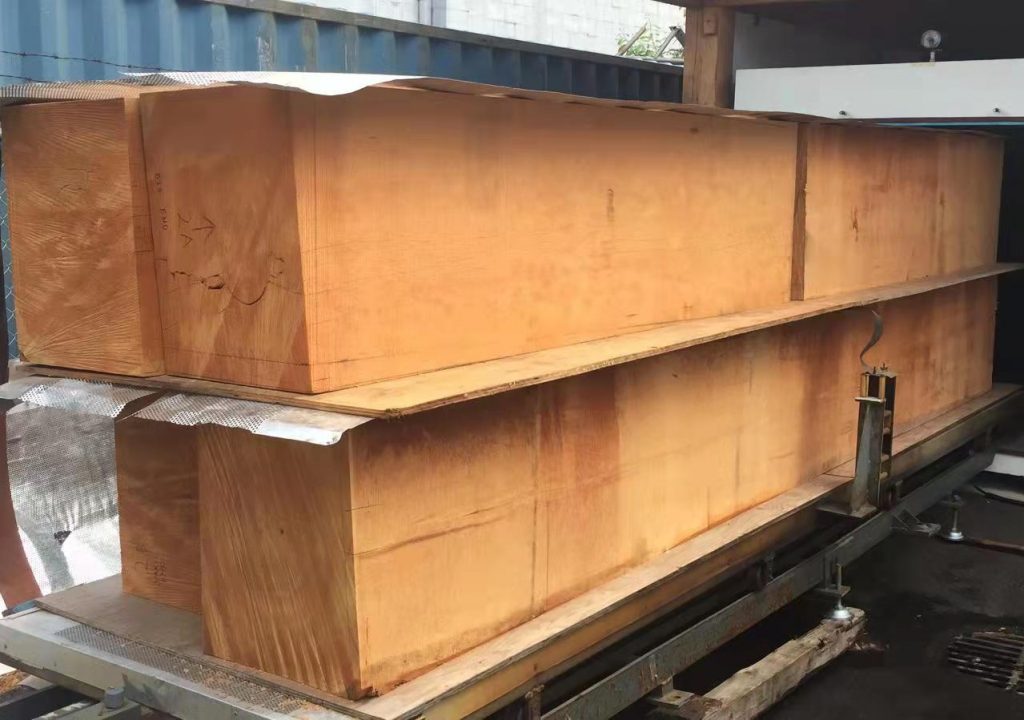

Ultra Thick Wood Drying Test

Obviously, for the drying results of ultra-thick wood, shuowei wood drying kiln can also easily achieve

Our Customers

Many customers from the world are benefitting from the high frequency drying technology, if you want make your drying process easier and faster, welcome contact us

Vacuum kiln in the United States

Vacuum kiln in the Vietnam

Vacuum kiln in the Unite States

Have more questions please contact us

Sales Team

Our sales team can help you with the price and shipping costs calculations. Come On! Be a member of high frequency vacuum wood dryer kiln users, make your wood drying process easier and faster.

Technical Support

Our technical teams are rich experiences in wood drying, if your any question about wood drying, especially for difficult drying hardwood block,slab,and special wood species drying questions. welcome contact us.

We'd like to work with you

Send us a message if you have any questions or request a quote. Our experts will give you a reply within 24 hours and help you select the right HF wooddryer you want.
