High-Frequency Vacuum Wood Drying Kiln for Hardwood & Lumber
- 30+ Years of Wood Drying Experience
- Multiple Kiln Capacities
- Custom Solutions Available
HF Vacuum Wood Drying Kilns
Shuowei HF vacuum wood drying kilns are built for controlled and efficient drying of hardwood, lumber, slabs, and other wood products. Choose from multiple kiln capacities, with custom configurations available to match your drying requirements.
Which Kiln Capacity Is Right for You?

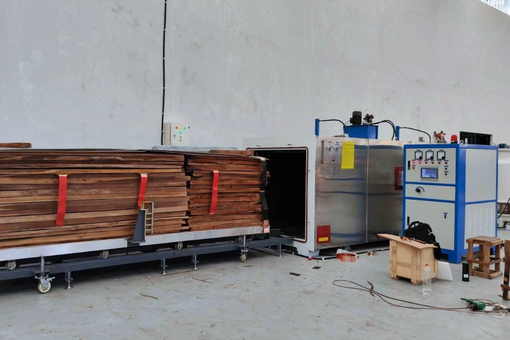

SWKD-4.0HFV (4.4 m³)

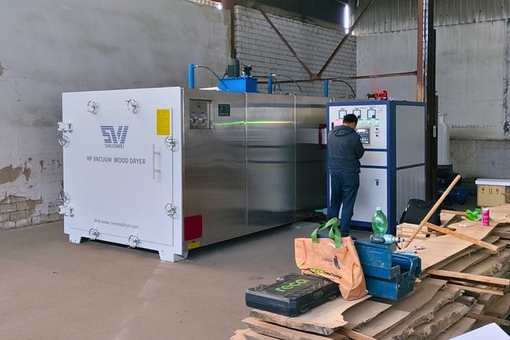

SWKD-8.0HFV (8.64 m³)

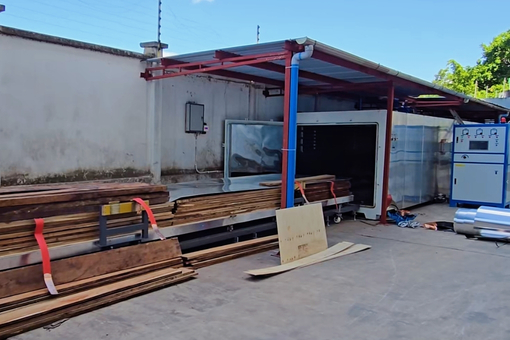

SWKD-14.0HFV (14.56 m³)
More Efficient Drying. Measurable Results.
A well-controlled drying process can help you shorten drying cycles, improve moisture consistency, and increase the productivity of your operation.
Up to 8–10X faster
High-frequency vacuum drying can significantly shorten drying cycles compared with conventional kiln drying, depending on wood species, thickness, initial moisture content, target moisture content, and process conditions.
Target MC: 6–12%
Controlled vacuum drying helps achieve target moisture content for further processing, furniture manufacturing, flooring, and other wood products.
Shorter drying cycles can increase kiln turnover and allow more wood to move through your production process.
Controlled low-temperature drying helps reduce drying stress and protect the quality of hardwood, slabs, and other valuable wood products.
Efficient operation and shorter drying cycles can help reduce the cost of processing each load and improve overall equipment utilization.
Built for Different Wood Processing Applications
Hardwood & Sawmill Drying
Hardwood & Sawmill Drying
Live Edge Slab Drying
Live Edge Slab Drying
Specialty & High-Value Wood
Specialty & High-Value Wood
Furniture Lumber Drying
Furniture Lumber Drying
Flooring Lumber Drying
Flooring Lumber Drying
Why Choose HF Vacuum Drying?

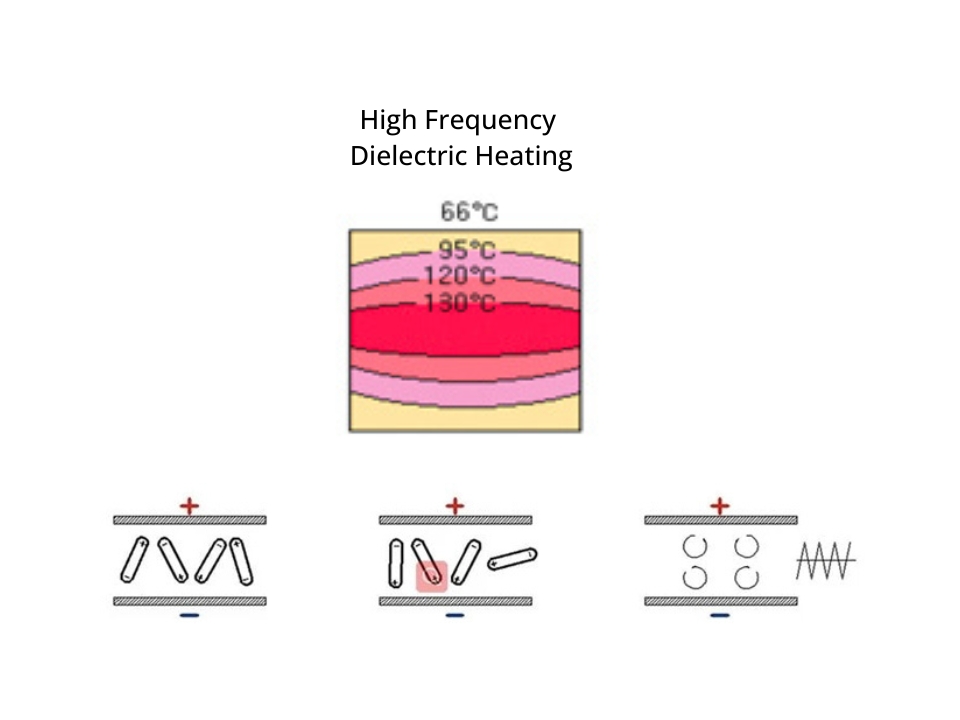

HF vacuum drying combines high-frequency heating with vacuum technology to heat wood internally while lowering the boiling point of water. This enables rapid moisture removal at controlled temperatures and helps reduce drying stress.
High-frequency energy heats the wood internally, helping moisture move from the inside of the wood toward the surface.
Vacuum reduces the boiling point of water, allowing moisture to evaporate at lower temperatures than under atmospheric pressure.
Temperature, vacuum, and drying parameters are controlled throughout the process to help achieve consistent moisture content while reducing excessive drying stress. Automated controls and easy-to-use drying programs help operators manage temperature, vacuum, and drying parameters throughout the process.
Automated controls and user-friendly drying programs simplify kiln operation and help operators manage the drying process with greater consistency.
Controlled heat treatment can help eliminate insects and pests present in wood during the drying process.
Controlled heat treatment can help eliminate insects and pests present in wood during the drying process.
Proven Drying Results
Real drying results demonstrate how Shuowei HF vacuum kilns perform across different wood species and moisture conditions. Actual drying time and results vary depending on species, thickness, initial moisture content, target moisture content, load configuration, and drying conditions.
| Species | Initial MC | Final MC | Thickness | Drying Time |
|---|---|---|---|---|
| Oak | ~50% | 10% | 75–100 mm | 8–10 days |
| Teak | 37–60% | 6–9% | - | 10 days |
| Mahogany | 40–50% | 8–10% | 50–70 mm | ~5 days |
| Eastern Cottonwood | 75% | 8% | 70 mm | ~4 days |
Mexican customer 20 cubic meters
7-inch thick hickory wood with an internal moisture content of 5%
European customers complete drying in 8 days
Mahogany : 6% moisture content Teak: 5% moisture content
1.25 inch pine wood drying time within 5 days
Acacia dried by high frequency vacuum wood dryer
Clients We Have Served
Shuowei wood drying kilns are exported to more than 80 countries and regions such as North America, Europe, South America, Central Asia, Southeast Asia, Russia, Australia, Africa, the Middle East, etc., and have won high praise from customers.
Why Choose Shuowei?
From kiln design and manufacturing to installation and after-sales support, Shuowei provides practical wood drying solutions built around your production needs.
With decades of experience in wood drying equipment, Shuowei combines practical drying knowledge with ongoing equipment development to serve customers in different wood processing applications.
We can configure kiln capacity, loading arrangements, and system parameters around your wood dimensions, production volume, and drying requirements.
From wood drying kiln construction and electrical systems to assembly and testing, key manufacturing processes are managed in-house to maintain consistent quality and reliable equipment performance.
From installation and operator training to technical guidance and spare parts support, our team remains available to help keep your drying operation running reliably.
Qualifications and Certifications
From Drying Requirements to a Working Kiln
We help you select, configure, install, and operate the right HF vacuum kiln for your wood and production requirements.
Tell Us About Your Wood
Share your wood species, dimensions, initial moisture content, target moisture content, and typical load volume.
Get Your Kiln Recommendation
Our team evaluates your drying requirements and recommends a suitable kiln capacity and configuration.
Production & Installation
Your wood drying kiln is manufactured and prepared for delivery, with installation guidance provided on site or remotely.
Start Drying with Confidence
We provide operator guidance, technical support, and spare parts assistance to help keep your kiln running reliably.
Have more questions please contact us
Business Team
Technical Support
Not Sure Which Kiln You Need?
Tell us what you are drying and how much you process. We’ll help you determine the right kiln capacity and configuration.
